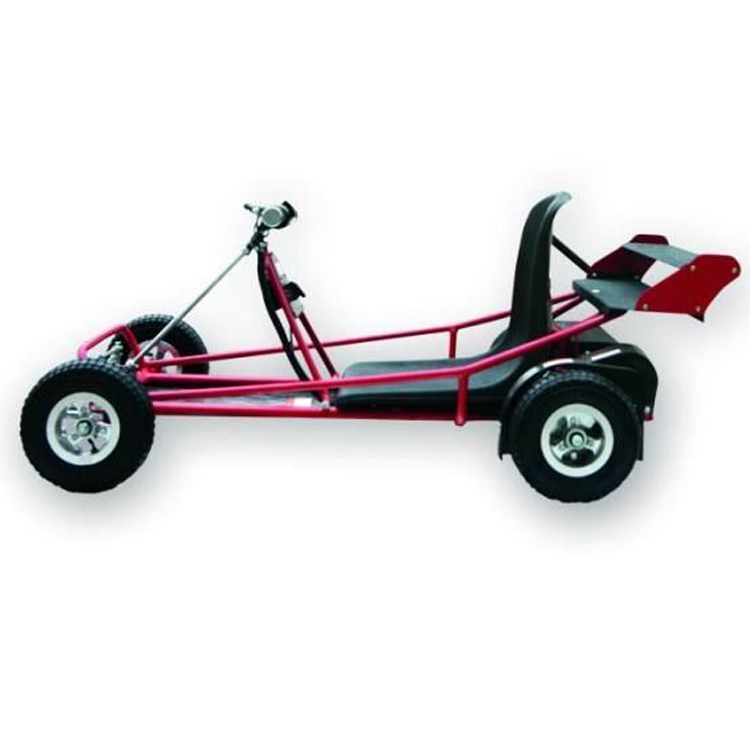

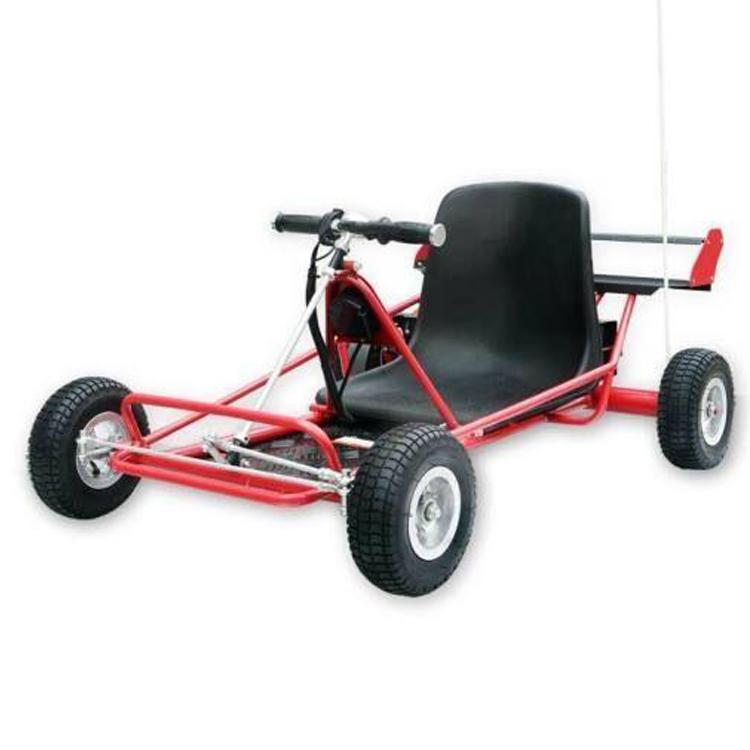

Go-karts FLGO-1001
Products Information
Product Information
| Model | solarGK |
| Size: L*W*H | 1200mm×830mm×530mm |
| wheel base | 840mm |
| front gauge | 640mm |
| track rear | 755mm |
| Tire type | 9×3.5－4 |
| Tire inflation pressure largest | 85P.S.I. |
| motor power | 350W |
| working voltage | 24VDC |
| maximum speed of revolution | 2750rpm |
| transmission ratio | 8.36 |
| Battery type | 24V、13Ah |
| Max load capacity | 65kg |
| maximum speed | 15km/h |
| Solar panels effective area | 0.064㎡（606mm×106mm） |
| Solar panel power | 4W |
| NW | 38kg |
| GW | 46kg |
| packing size | 1235mm×890mm×375mm （ non-disassemble tires） |
Detailed Features And Design

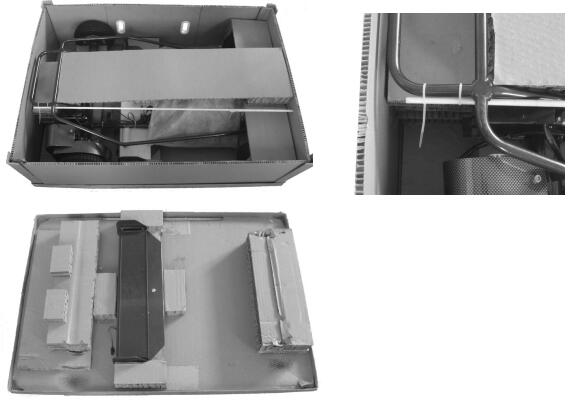

Solar Go-kart Assembly Manual1) Remove the top of the Solar Go Kart box by carefully removing the staples on the four corners & carefully cutting straps and place cover on ground as shown below.
Remove Safety Flag by carefully cutting the ties.

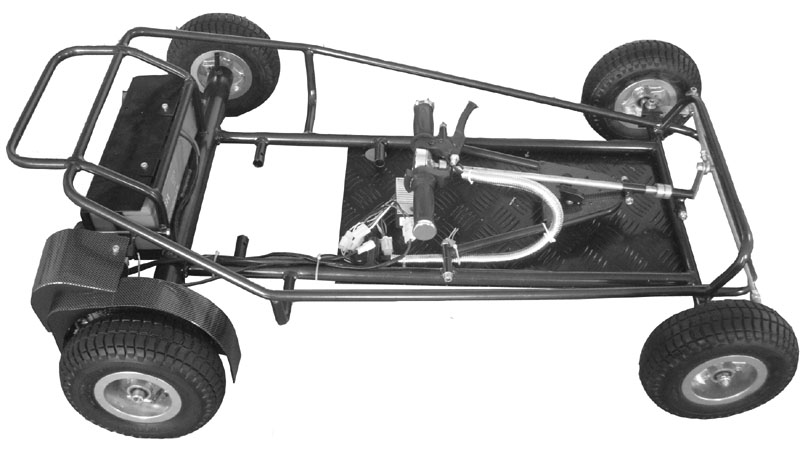

2) Carefully Remove Go Kart from box and place on flat surface

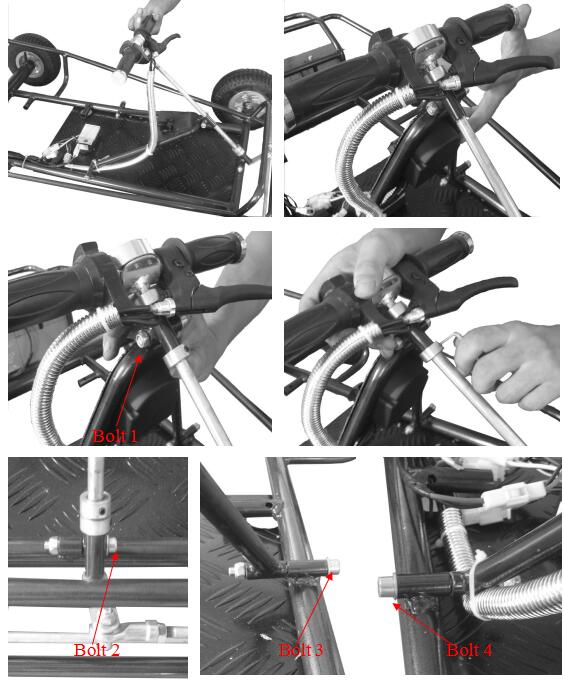

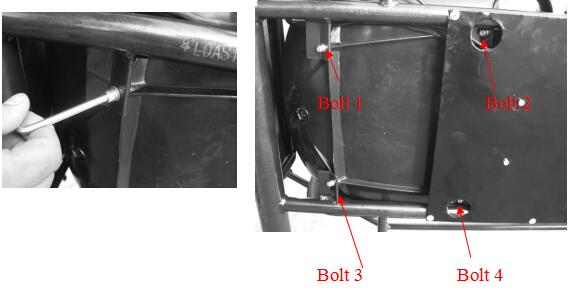

3) Lift up the handle bar assembly while sliding up the control panel until it is fully extended, tighten with Allen wrench provided. Make sure to tighten the four nuts / bolts as shown below.

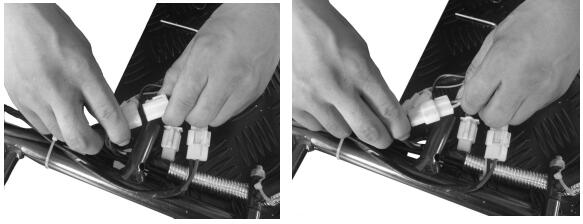

4) Connect the lead wire of battery to connector of controller with firm pressure.
5) When connecting the battery harness , be sure to snap connectors
Securely and zip the excess wires to frame.

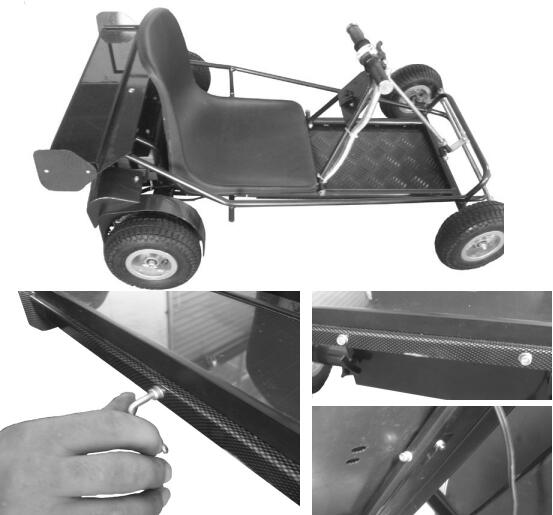

6) Align the seat with the four Screw holes as shown below and
mount using 4 - M6×30 (1/4”×1-1/5”) bolts, use Allen wrench
provided. Bolts to be connect from the bottom of the Go Kart.
7) Place Solar panel on the rear of the Kart (above Battery compartment)
Connect with the three bolts and washers as shown below.
8) Connect the Solar Panel cables securely

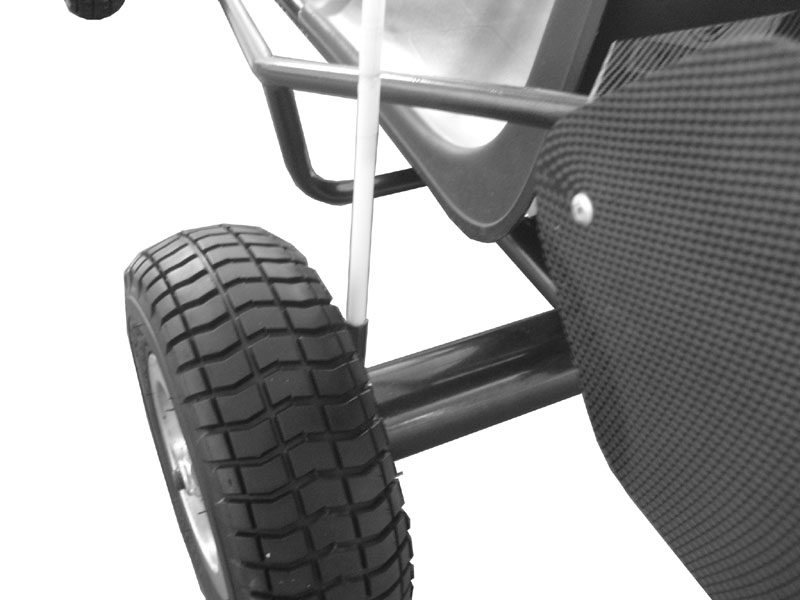

9) Insert the Safety Flag by inserting into base next to left rear tire.
Caution: Do Not Operate Without Flag
Congratulations, Your SolarWing 350 Go Kart is ready for use.

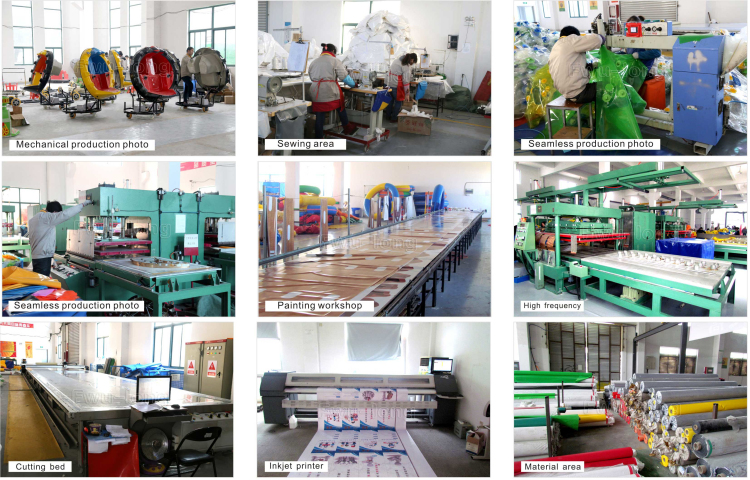

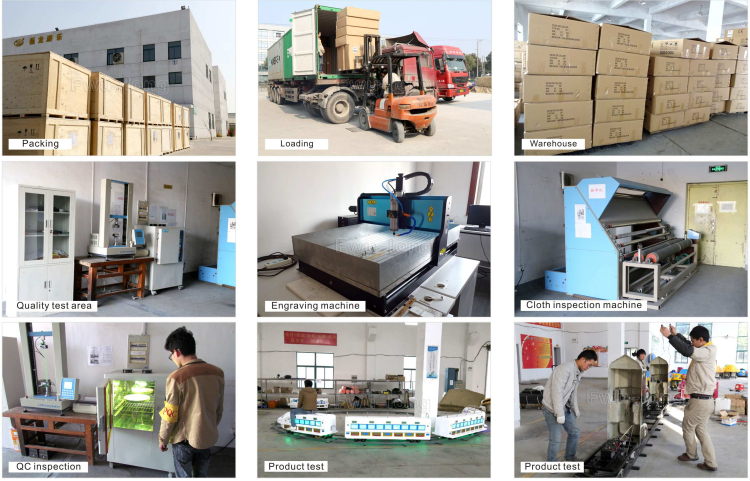

Factory Picture
Customer Feedback And Related
Advantage
1). We have our own factory in China.
2). Professional manufacturer of amusement park rides (8 years production experiences).
3). Rich exporting experiences (more than 8 years experiences).
4). Splendid workmanship,we have strict inspection before leaving our factory.
Packaging And Shipping
1.Standard export carton case.
2.Closely relationship with shipping company, fast freight and better service
Company Information
Suzhou Fwu-long Amusement Equipment Co,. Ltd is a professional enterprise which is specialized in consistently developing, designing, producing and marketing amusement equipment for the Amusement Industry.Through many years development, we have achieved a great success.
FAQ
Q: Do you have any warranty for your products? How can I do in case it get damaged?
A: All our products are strictly tested from the material incoming to shipment and the quality are reliable. However, for oversea orders, as it’s not convenient to return the damaged products, we provide free repairing kit for customers’repairing purpose. Normally, the reparing work is very easy.
Q: What’s the lead time?
A: The lead time depends on the quantity and the time that you place the order. Usually, for 1-3 items, they can be finished within 5-15 working days.
